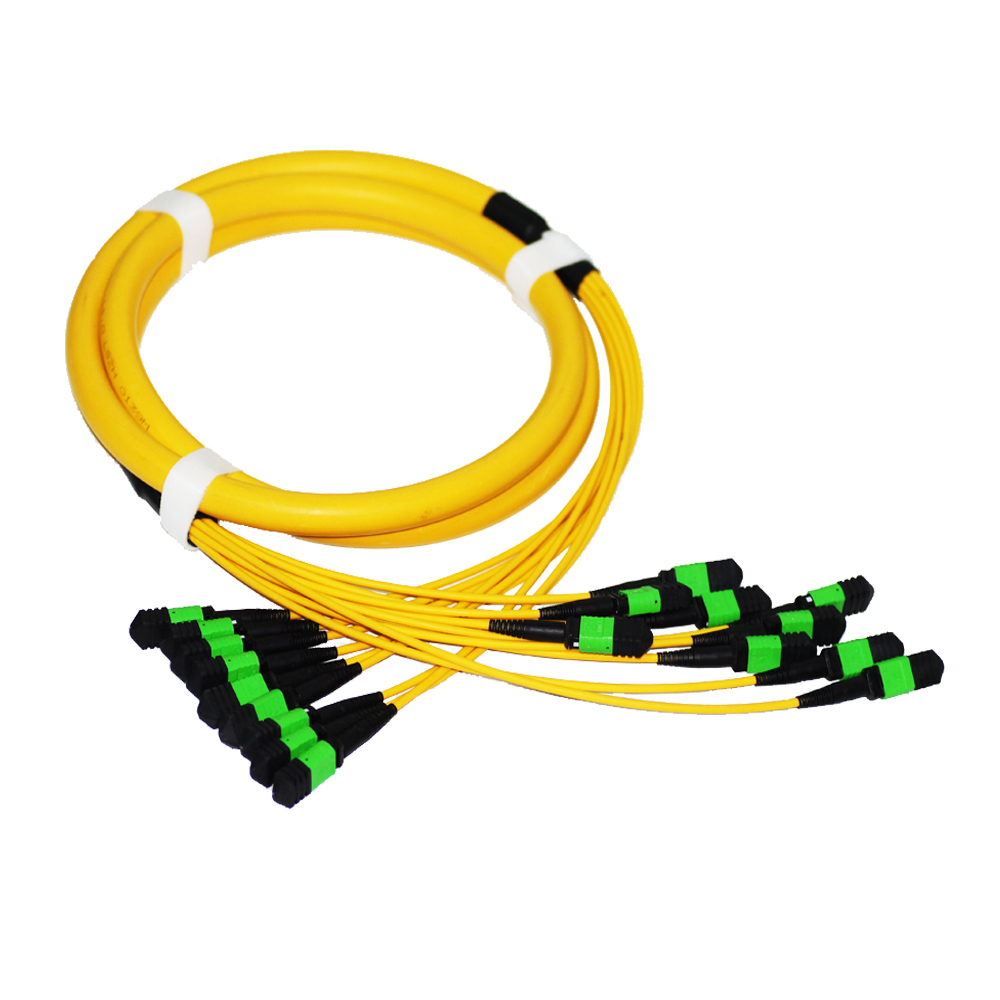

144 Cores MPO/APC - MPO/APC SM OS2 Singlemode OS2 Trunk Cable

144 Cores MPO/APC - MPO/APC SM OS2 Singlemode OS2 Trunk Cable

12/24 f.o. MPO/MTP® Trunk cable facilitates a rapid deployment in high density environments. Used to interconnect MPO/MTP® cassettes and panels with the active equipment ports. There high performance factory tested assemblies are pre-terminated with 12-fiber MTP / MPO connectors and offered in customer –specified lengths and configurations. Options of 12-, 16-, 24-, 32-, 36-, 48-, 72-, 96- and 144-fiber, terminated with round Mini-core cable to fit for each installation needs.
      Product Literature
Specification

Cable Assemblies Technical Information


Polarity

All GUOMING’s MTP (MPO) cable assemblies in this document are having Straight Polarity (A-to-A, B-to-B). Cross Polarity (A-to-B, B-to-A) or Pair Flip polarity is available, please contact our sales team for details.

Parameter

Application


● Data Centre Infrastructures;

● Applicable in backbone installation;

● Support different applications and field requirements;

● Fits for different installation environments;

● High flexibility for different equipment;

● Satisfies client’s needs in different industries.


Features


● Use to distribute some or all of the fibers in a trunk cable to other areas;

● Have pins (Male type) on one end of the connector, and no pin (Female type) on the other end;

● Choices of MPO/MTP in 12 or 24-fiber connector interface;

● 100% tested;

● Fiber counts available in 12 / 24 / 36 / 48 / 72 / 96 / 144-fibers;

● Round & mini-core cable structure to eliminate bend sensitivity;

● Available in singlemode (9/125um), multimode (50 or 62.5/125um) and 10Gig fiber;

● Optional pulling eye design to fit for different installation environment.

Products Overview

12/24 f.o. MPO/MTP® Trunk cable facilitates a rapid deployment in high density environments. Used to interconnect MPO/MTP® cassettes and panels with the active equipment ports. There high performance factory tested assemblies are pre-terminated with 12-fiber MTP / MPO connectors and offered in customer –specified lengths and configurations. Options of 12-, 16-, 24-, 32-, 36-, 48-, 72-, 96- and 144-fiber, terminated with round Mini-core cable to fit for each installation needs.
