19'' 1U 144 Cores MPO-LC OM3 Fiber Optic Patch Panel

19'' 1U 144 Cores MPO-LC OM3 Fiber Optic Patch Panel

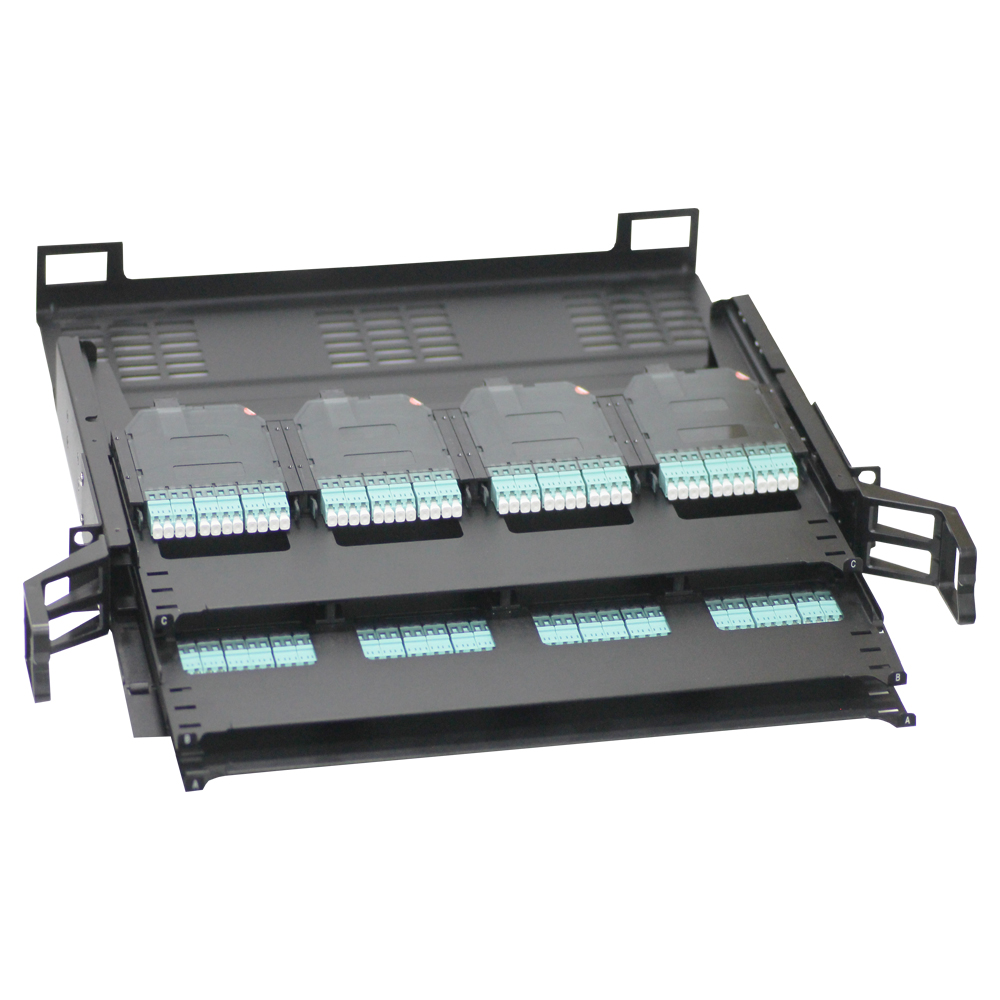

NT989 is MPO/MTP® pre-terminated ultra-high density wiring box, 19 inches, 1U height reaches 144 cores, can be applied to data center, computer room, computer center and other high-density wiring places, front and rear removable upper cover, pull-out double the use of guide rails, detachable front bezels, ABS lightweight modular boxes, etc., makes the NT989 easy to use in high-density scenes, whether in cable or cable. The NT989 has 01, 02, 03 three layers of trays, each with independent aluminum guide rails and a sliding distance of 110mm. 4 x 12F MPO/MTP® module boxes can be installed in each tray, and each module box can be installed with 6 x DLC adapters to achieve 12 cores. Each module box has a separate ABS rail that can be easily installed without restrictions.
      Product Literature
Specification

Application

1) Data center;

2) Pre-terminated installations or telecommunication networks.

Parameter

Application

1) Data center;

2) Pre-terminated installations or telecommunication networks.

Products Overview

Features

1) Ultra-high density wiring application scenario;

2) Standard 19-inch width;

3) Ultra high density reaches 1U 144 cores;

4) Double rail design for easy installation and maintenance;

5) Lightweight ABS material MPO/MTP module box;

6) Spray surface treatment process;

7) Customized color and silk screen LOGO.
