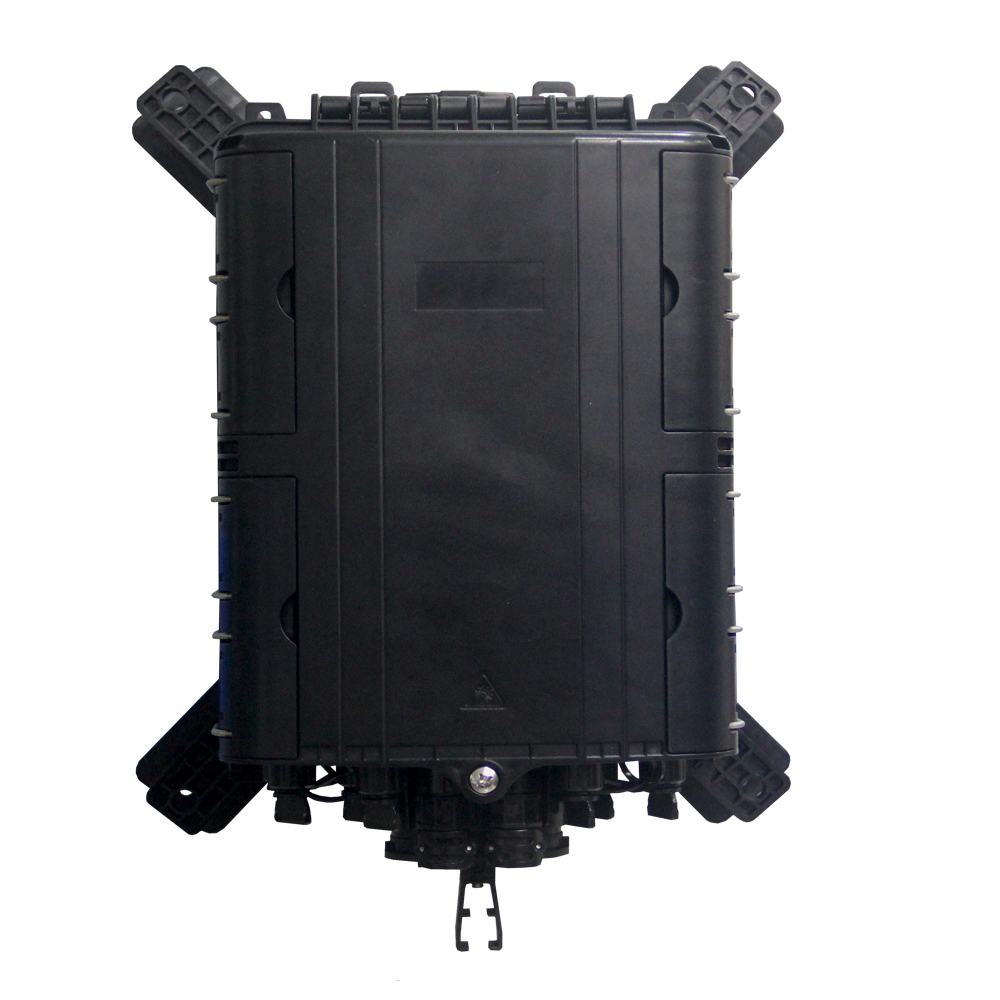

Application

1) Closed structure;
2) Material: PC+ABS, protection grade up to IP68;
3) The feeder optical cable and the connecting optical cable are fixed, integrating multiple functions of
fiber splitting, optical splitting, and storage;
4) Optical cable fast bracket installation. Easy to maintain and expand;
5) The wiring board can be turned over, which is convenient for maintenance and installation;
6) The cabinet can be wall-mounted or column-mounted, suitable for indoor and outdoor use;
7) Quick installation, during construction, the socket can be taken out and melted and then put back;
8) There are four splicing trays for independent construction. Convenient and concise.

Features

1) Small size and elegant appearance.
2) Wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP68.
3) Plug and play, FastConnect drop cable instead of splicing, be installed without opening the box.
4) Faster cable inletting and sealing module make installation efficiently.
5) Support dispatching fibers from same loose tube into different trays.
6) Flexible splicing tray design.
7) Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.

Thunder-proof technical datasheet

1) The insulation resistance between the grounding device and the metal parts of the box is not less than
2MΩ/500V (DC); IR≥2MΩ/500V;

2) The resistance between the grounding device and the box and its metal parts is not less than 3000V (DC)/min, no puncture, no flashover; U≥3000V.
