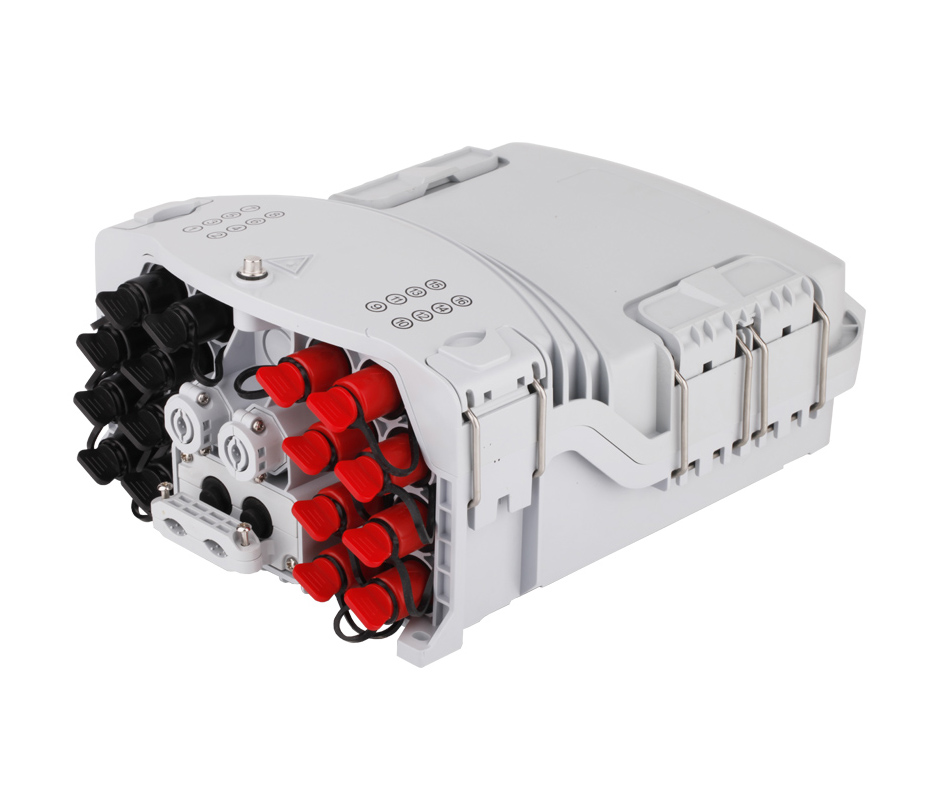

16 Cores Fiber NAP Terminal Box

1x16 PLC Splitter FDB or16 Fiber Optic Distribution Box

This kind of fiber distribution NAP box is able to hold up to 16 subscribers and 96 splicing fiber. It is used as a splicing closure and a termination box for the feeder cable to connect with drop cable in FTTX network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

      Product Literature
Specification

1) Water-proof design with IP-65 Protection Level.
2) Integrated with flap-up splice cassette and adaptor holder.
3) All stainless metal plate and anti-rusting bolts, nuts.
4) Fiber bend radius control more than 40mm.
5) Suitable for the fusion splicer or mechanical splice.
6) 2pcs of 1*8 Splitter can be installed as an option Mechanical sealing structure and mid-span cable entry.
7) 16 ports cable entrance for drop cable.
8) 16 adapters for drop cable patching.
9) Wall-mounted or poled-mounted, both indoor and outdoor use.
10) Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
11) Cable, pigtails, patch cords are running through own path without disturbing each other,cassette type SC adaptor installation, easy maintenance.

Parameter

Item Name 16 Cores FTTH Fiber NAP Terminal Box
Material PC+ABS
Color Blue
Max Capacity Splice 16 Fibers (1trays, 16fiber/ tray)
2pc of 1*8 PLC Splitter
Insertion loss ≤0.2dB
Return loss ≥50dB
Size 287*172*102mm
Color Blue/Gray/Black
Adapter 16pc of SC
Atmospheric pressure 70KPa~106Kpa
Relative Humidity ≤85% (+30℃)
Working temperature -40 ⁰ C ~+85 ⁰C
Weight 1.15kgs
Pull out Life Insulation ≥1000 times
Products Overview

Our Outdoor IP65 16FO CTO Fiber Optical Distribution Terminal NAP Box offers a complete solution for fiber optic cable distribution. With a total enclosed structure and made of PC+ABS material, it is wet-proof, water-proof, dust-proof, and anti-aging, with a protection level up to IP65. Featuring clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution, and more, all in one. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, with micro type PLC splitter installation and easy maintenance. The distribution panel can be flipped up, and feeder cable can be placed by expression port, making it easy for maintenance and installation. The box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
